APGX-H
Convection Pirani
(1333 to 10⁻⁴ mbar)

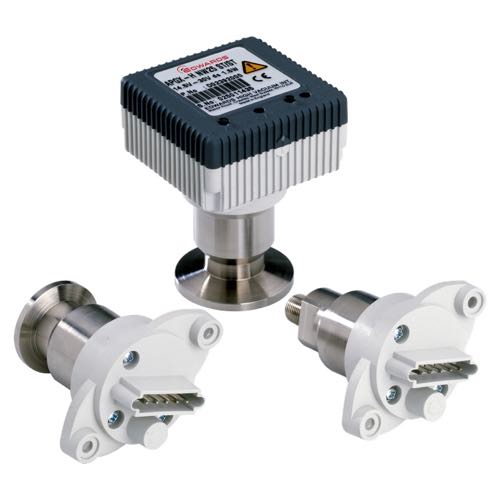

Edwards Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10⁻⁴ mbar (1000 to 2.3 x 10⁻⁴ Torr). The use of convection technology ensures accuracy and sensitivity are maintained to the top of the range.
The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.

Features and Benefits
• Wide measuring range 1333 to 3 x 10⁻⁴ mbar (1000 to 2.3 x 10⁻⁴ Torr).
• Use of convection technology ensures consistent measuring accuracy (typically ±15%) and repeatability (±5%) to top of range.
• Reduced cost of ownership.
• Replaceable tubes are available.
• CSA, C/US Approved.
