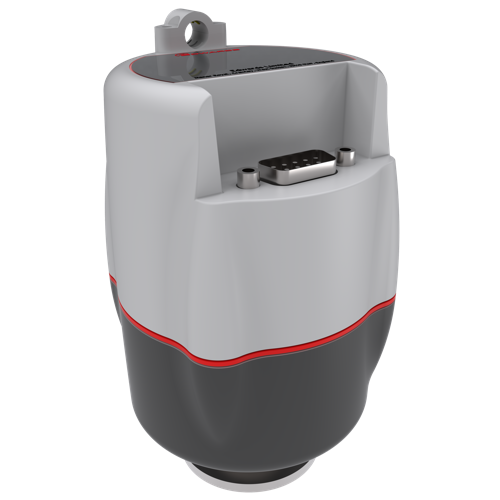

Wide Range Gauge
(Atm. to 10⁻⁹ mbar)


The Wide Range Gauge (WRG) family offers the capability of single port pressure measurement in the range atmosphere to 10⁻⁹ mbar with a linear output. It’s a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications. The WRG has many novel features, including a new patented striker, push-button calibration and setpoint controls and comprehensive diagnostics. The WRG is a cost-effective vacuum management solution when used either with an Edwards controller or directly integrated into the system controls.

Features and Benefits
• Microprocessor signal processing gives seamless transition between Pirani and magnetron outputs as well as linear output (log pressure scale).
• D-type version including cable strain relief and enhanced ingress protection – IP44.
• Low magnetic field version (SL) available for sensitive applications e.g. mass spectrometry and electron microscopy.
• Easily programmed set-point covering entire measuring range.
• Magnetron uses an advanced patented technique for highly reliable striking, even at high vacuum or in relatively contaminated conditions.
